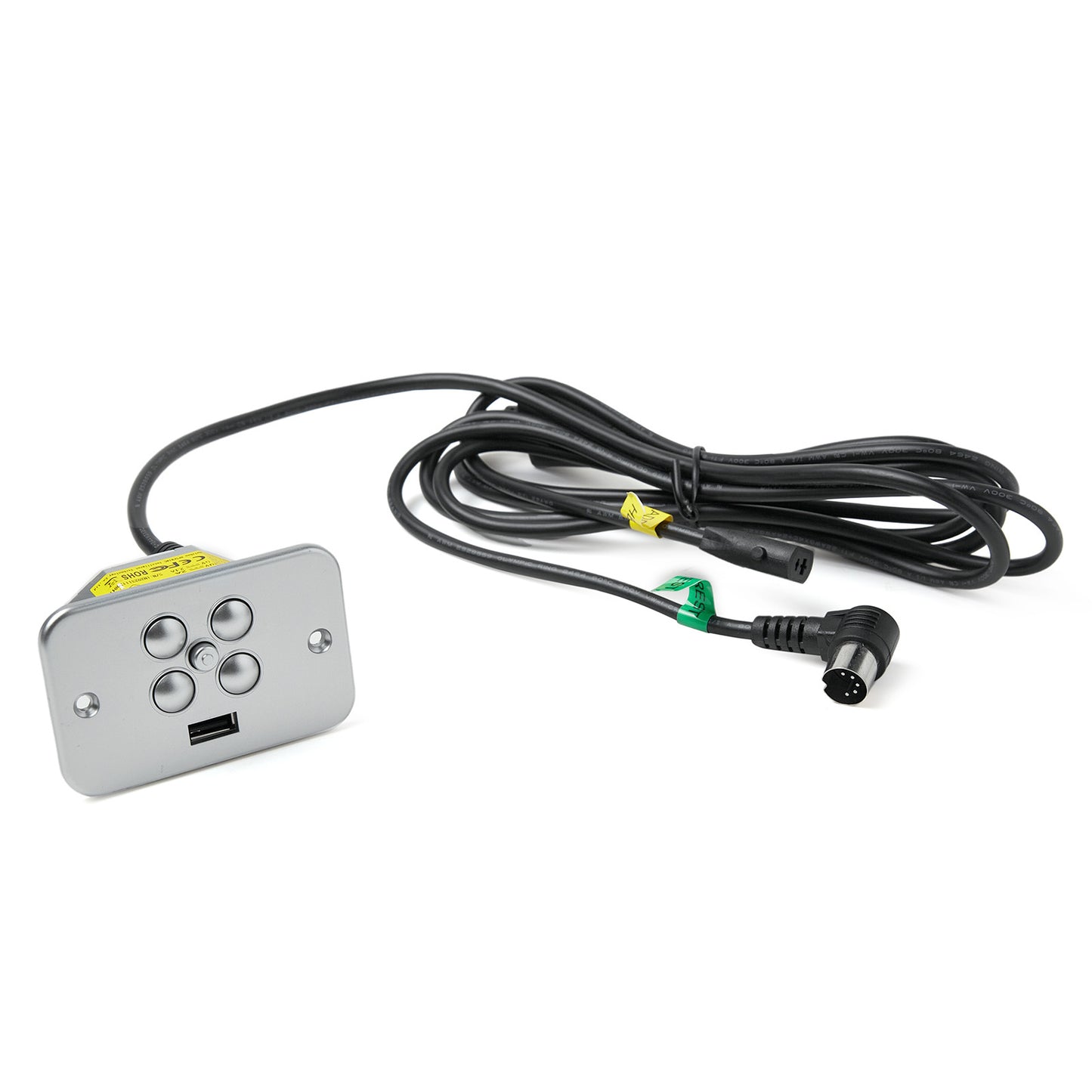

23300020X000 Five Button Switch for Recliner with USB

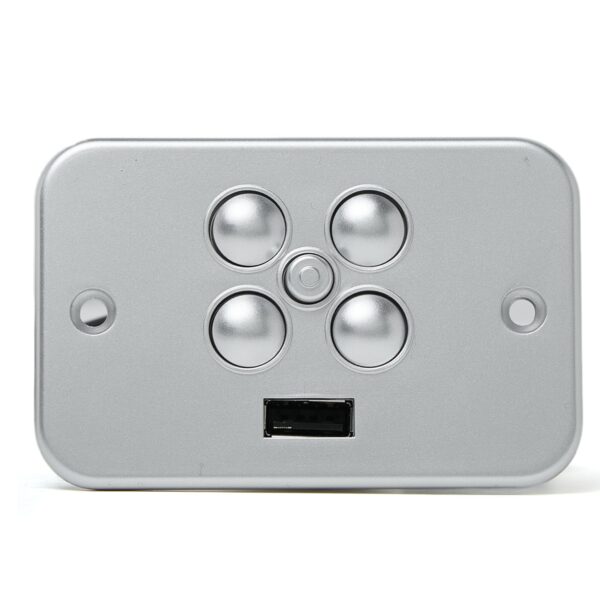

The switch has 5 buttons, it controls the open/close of the chair and the forward/backward of the head cushion

With a USB charging port, you can use it to charge your mobile device.

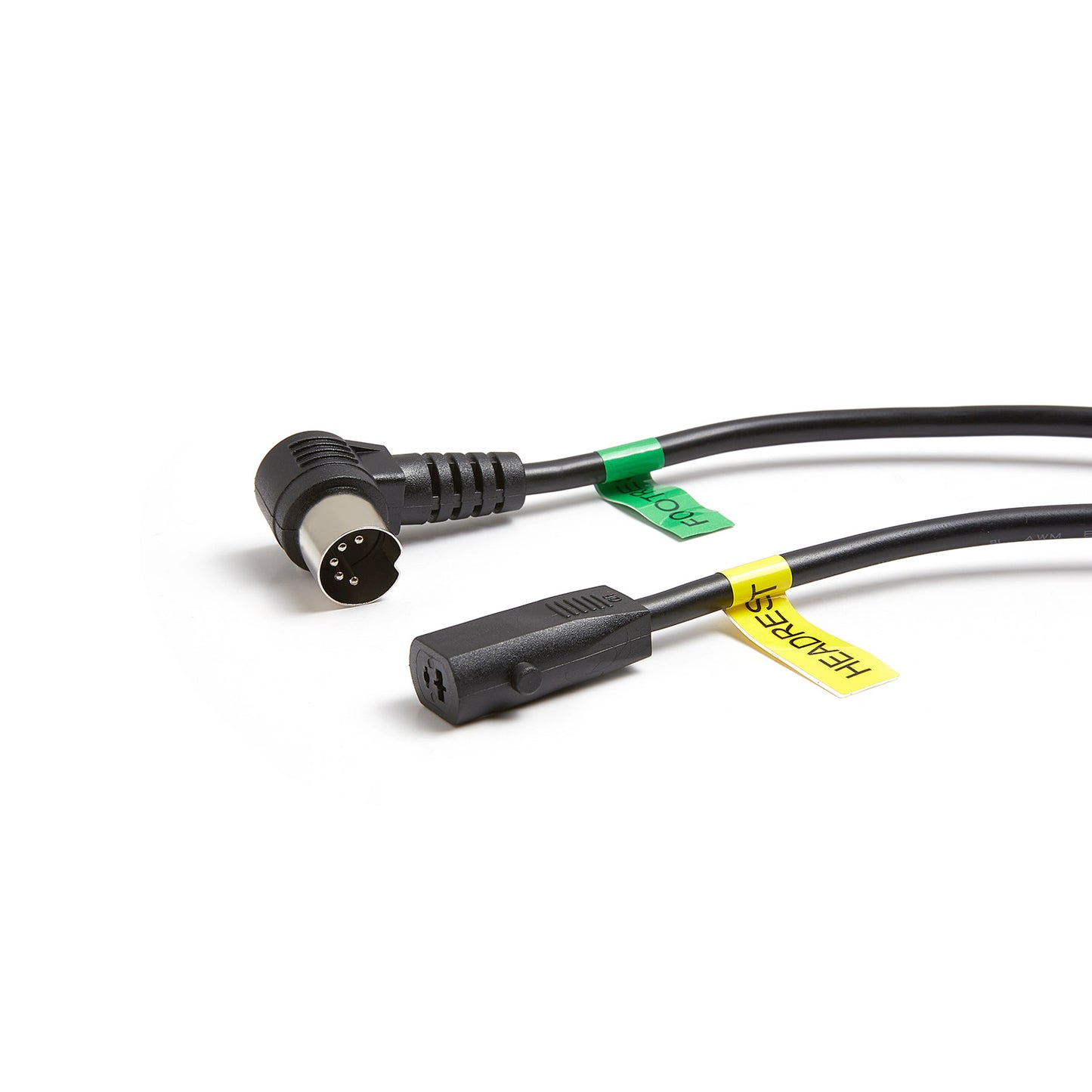

The switch has two wires & plugs, the 5-pin round plug connects to the up/down motor, the 2-pin plug connects to the head cushion motor.

• The 23300020X000 is not a cross compatible switch, please only order when your switch has the same model number.
• This switch can also replace the WPS5F10033(R) switch.
• This switch is for the right-side armrest when facing the chair (left side when sitting on the chair). If you need the left side, please click here.

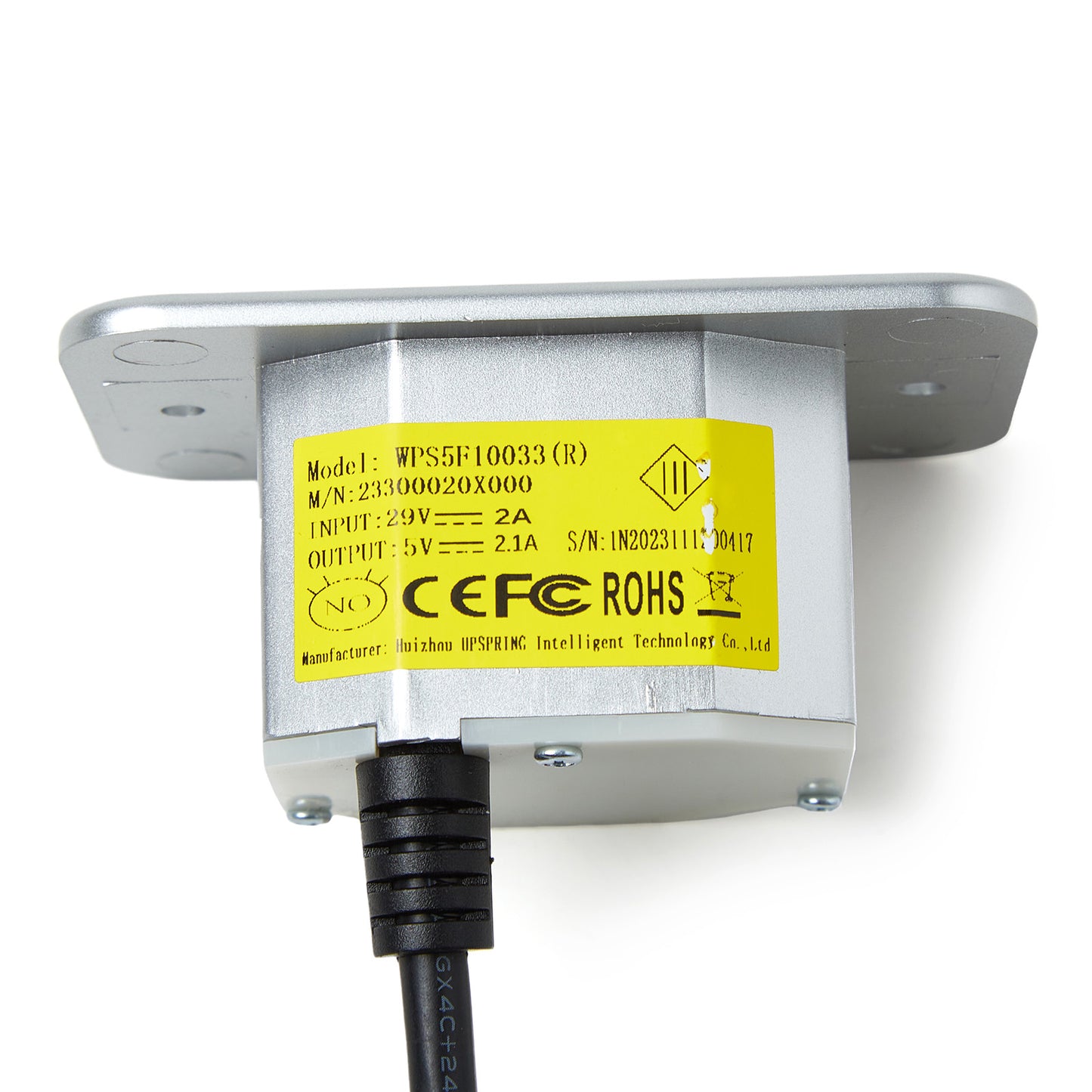

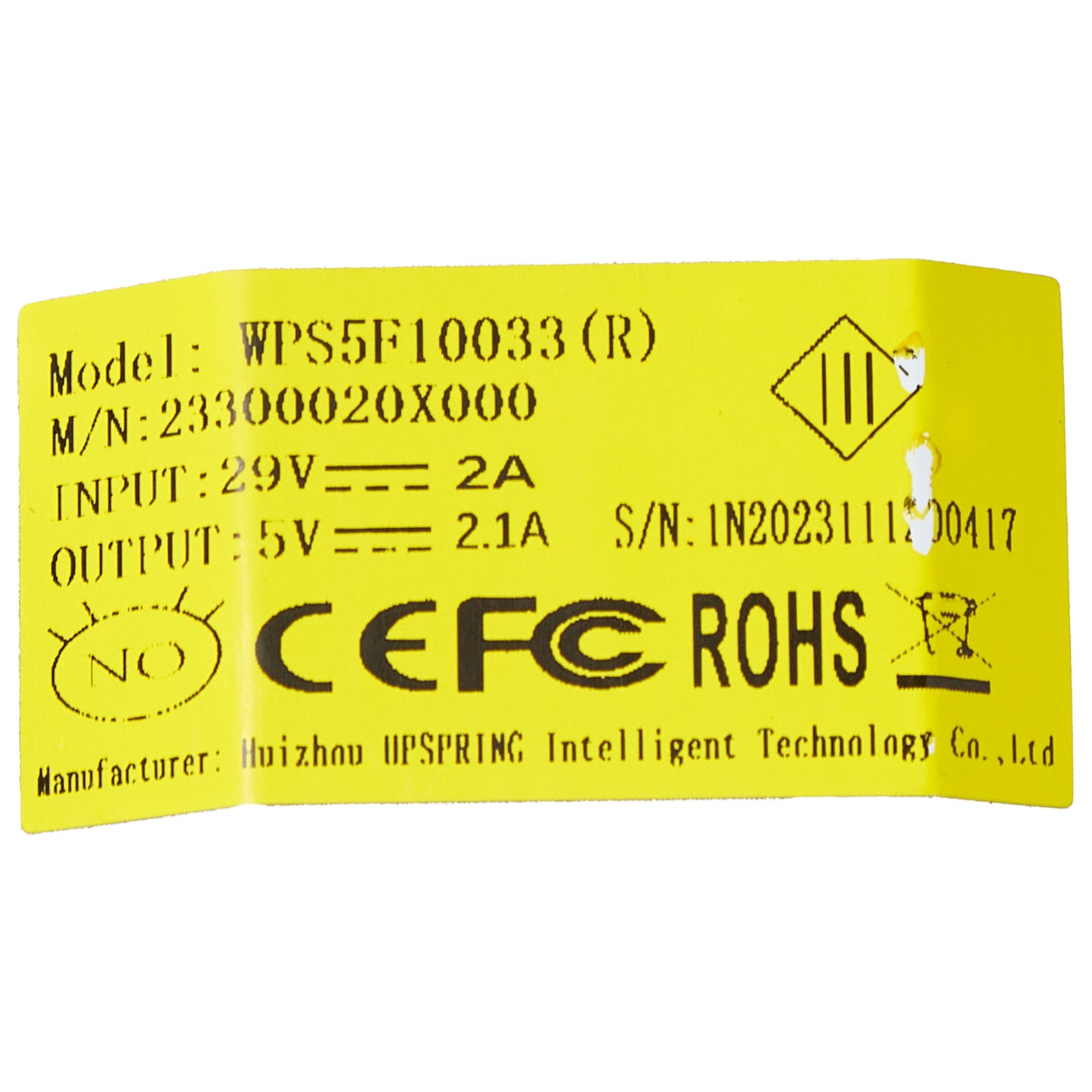

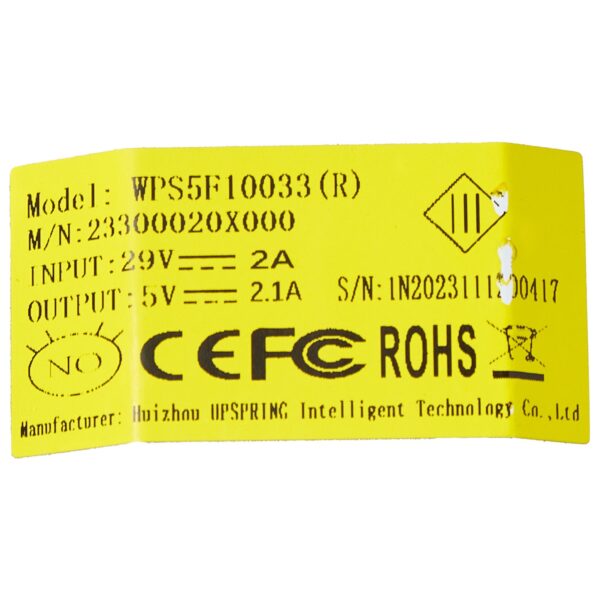

• Manufacturer Number: 23300020X000
• Model number: WPS5F10033(R)
• Rated Voltage: 29V 2A.
• USB port output: 5V 2.1A
